Pentarch - Cycle Phase Detection

Cycle phase detection indicator. Identifies market position across five distinct phases: accumulation, markup, distribution, climax, and decline.

👋

New to Technical Analysis? Start Here

In Plain English: Markets move through phases: quiet accumulation, a push, an overextension, an exhaustion, a breakdown. Pentarch marks which of those five the structure currently matches. It reads the phase you are in, and makes no claim about the one that comes next.

What You'll See on Your Chart: Pentarch shows 5 colored labels that appear above or below price candles. Each label tells you what's happening:

• 🟣 TD (Touchdown) = "Accumulation phase detected: downward exhaustion"
• 🩵 IGN (Ignition) = "Upward momentum is starting: markup phase beginning"
• 🟡 WRN (Warning) = "Price is getting stretched: distribution phase"
• 🟠 CAP (Climax) = "Upward exhaustion detected: climax phase"
• 🔴 BDN (Breakdown) = "Downward pressure detected: decline phase"

How It Works (The Simple Version): Pentarch checks 4 things before showing an event:

1. Is the overall market mood bullish or bearish?
2. Is price far from the average, or close to it?
3. Is momentum building or fading?
4. Did the price bar actually close (not just flicker during trading)?

Only when all 4 checks pass does a label appear. This reduces noise.

Beginner Starting Point: Just observe the events for 1-2 weeks. Notice how TD and IGN often appear during accumulation/markup phases, while WRN and CAP appear during distribution/climax phases. The patterns will start to make sense!

🎓 What are "market cycles"?

Markets don't move in straight lines: they move in repeating patterns called cycles. A typical cycle has 5 phases:

1. Accumulation: Quiet buying after a decline (TD event)
2. Markup: Prices start climbing as more buyers join (IGN event)
3. Distribution: Selling begins near the top (WRN event)
4. Climax: The peak before reversal (CAP event)
5. Decline: Prices fall as sellers dominate (BDN event)

Understanding which phase you're in provides context for market conditions.

🎓 Master this indicator with our free lessons: Lesson: Market Regime Recognition

---

🎯 Core Functionality Beginner Friendly

Pentarch displays event labels when four-layer detection conditions align at bar close. Five event types appear as colored labels on the chart:

• TD (Touchdown) - Label below candle
• IGN (Ignition) - Label below candle
• WRN (Warning) - Label above candle
• CAP (Climax) - Label above candle
• BDN (Breakdown) - Label above candle

Color Customization: Each event carries its own colour field in settings. The defaults are TD purple, IGN blue, WRN salmon, CAP red and BDN pink. Any of the five can be changed on its own.

Detection Method: Four-layer confirmation system:

Layer	What It Checks
1. Regime classification	Which phase of the cycle is running: accumulation, markup, distribution, climax or decline
2. Pilot line distance	Distance between price and the dynamic moving average baseline
3. Momentum validation	Strength and direction of price movement
4. Bar close confirmation	Signal confirmed only after candle closes (prevents repainting)

Events appear only when all four layers align.

Timeframe Compatibility: Works on all timeframes.

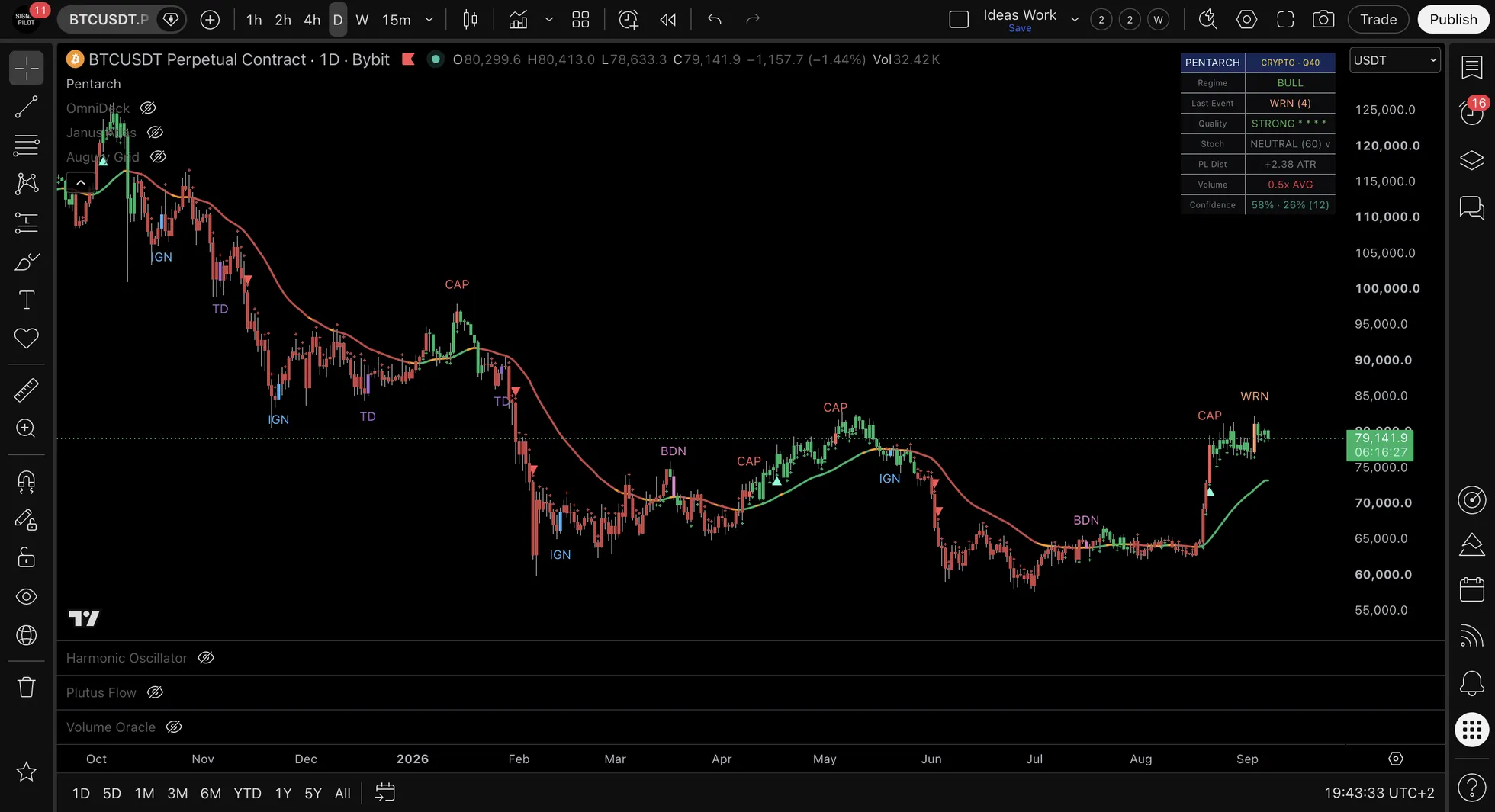

A year of daily bars on BTCUSDT.P. All five events appear, and CAP appears more often than any of the others. The panel on the right carries a header and seven rows: regime, the last event with how many bars ago, its quality label and stars, the stochastic zone, the distance from the Pilot Line in ATR, volume against average, and a confidence figure. Each row has its own switch, and the panel can sit in any of nine positions.

---

⚙️ Settings

Available configuration options:

Setting	Options	Default
Core Display	Show Pilot Line, Show Regime Bar Coloring	Both on
Signal Filtering	Strict Mode and HTF Trend Filter, each on its own, plus the HTF Timeframe the filter reads: Auto, 1H, 4H, Daily or Weekly	Both filters off, timeframe Auto
Min Quality Score	0 to 85, in steps of 5. 0 turns the filter off	40
Event Visibility	Show TD, IGN, WRN, CAP and BDN Labels, each on its own	All on
Label Size	Tiny, Small, Normal, Large	Tiny
Info Panel	Show the panel, place it in one of nine positions, and switch each of its seven rows on or off	Panel on, top right, every row on
Additional Signals	Show NanoFlow Crosses, Show Momentum Thrust Arrows	Both on
Event Colors	One colour field per event	Purple, blue, salmon, red, pink
Alert Toggles	TD, IGN, WRN, CAP, BDN (individual on/off)	All enabled

Note: Color customization available for all five event types in indicator settings.

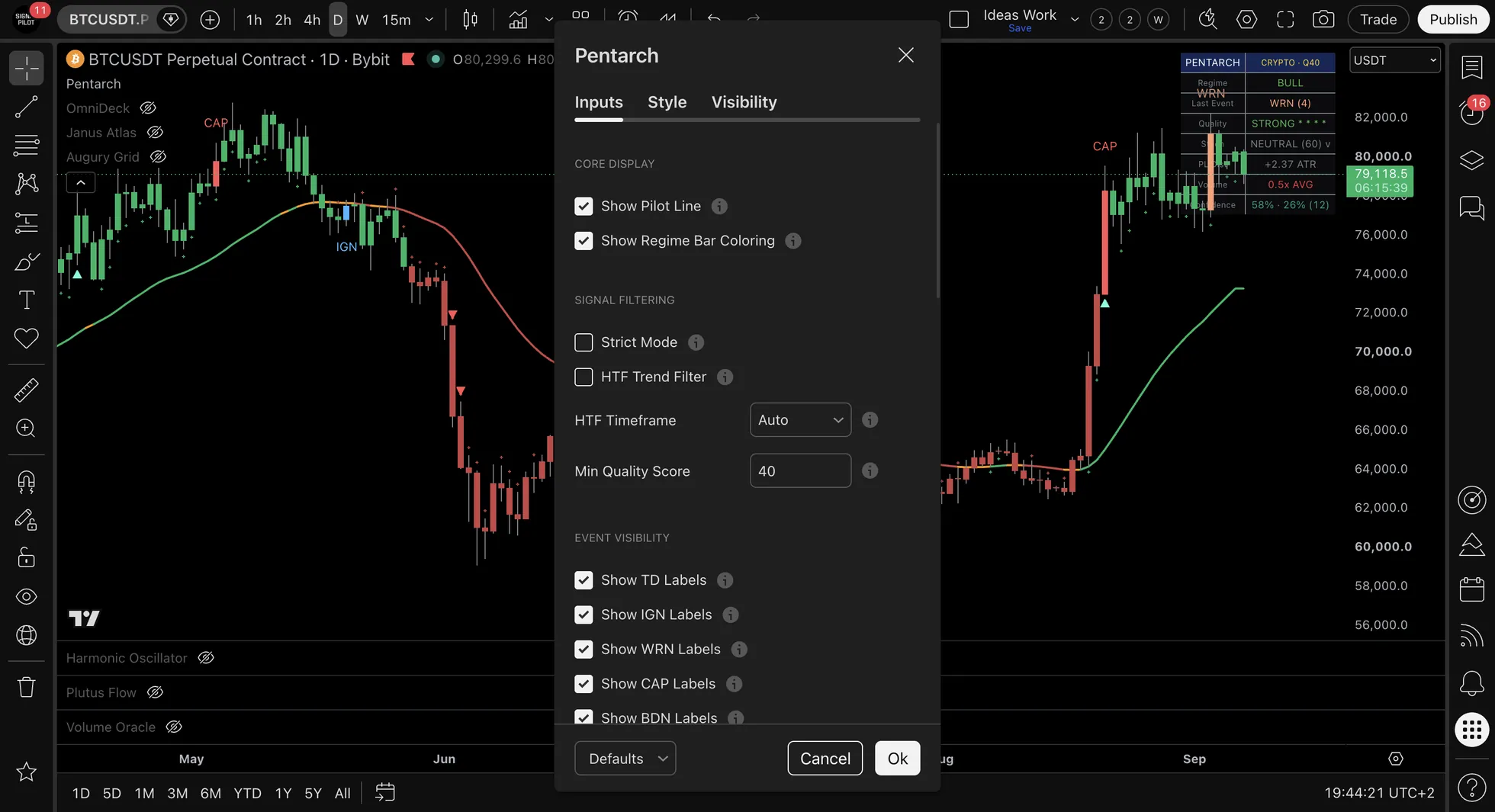

The Inputs tab. Min Quality Score is the control that decides how many events reach the chart at all, and each of the five has its own visibility toggle.

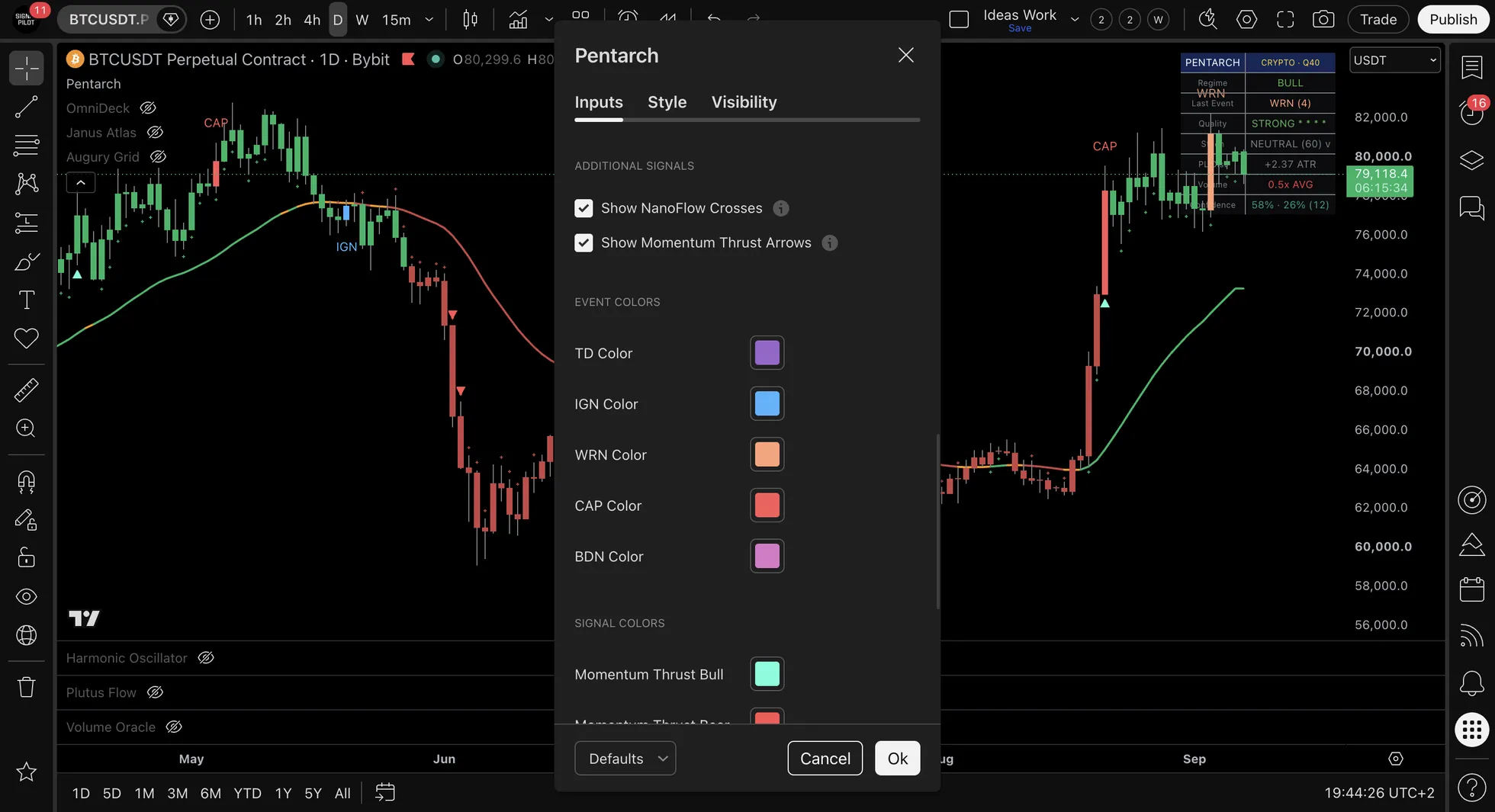

Further down the same tab. Colour is set per event rather than globally, so one event can be recoloured without disturbing the rest.

---

🎨 Recommended Chart Styling

To match the chart appearance used in our documentation and tutorials, configure your TradingView candle settings as follows:

Setting	Recommended Value	Notes
Body	Green / Red	Standard up/down colors (enable "Color bars based on previous close")
Borders	Off (unchecked)	Disable candle borders for cleaner appearance
Wick	Grey	Use neutral grey for wicks to reduce visual noise

How to Configure:

1. Right-click on your chart and select Settings (or click the gear icon)
2. Navigate to the Symbol tab → Candles section
3. Enable "Color bars based on previous close"
4. Set Body colors to green (up) and red (down)
5. Uncheck Borders to disable them
6. Set Wick color to grey

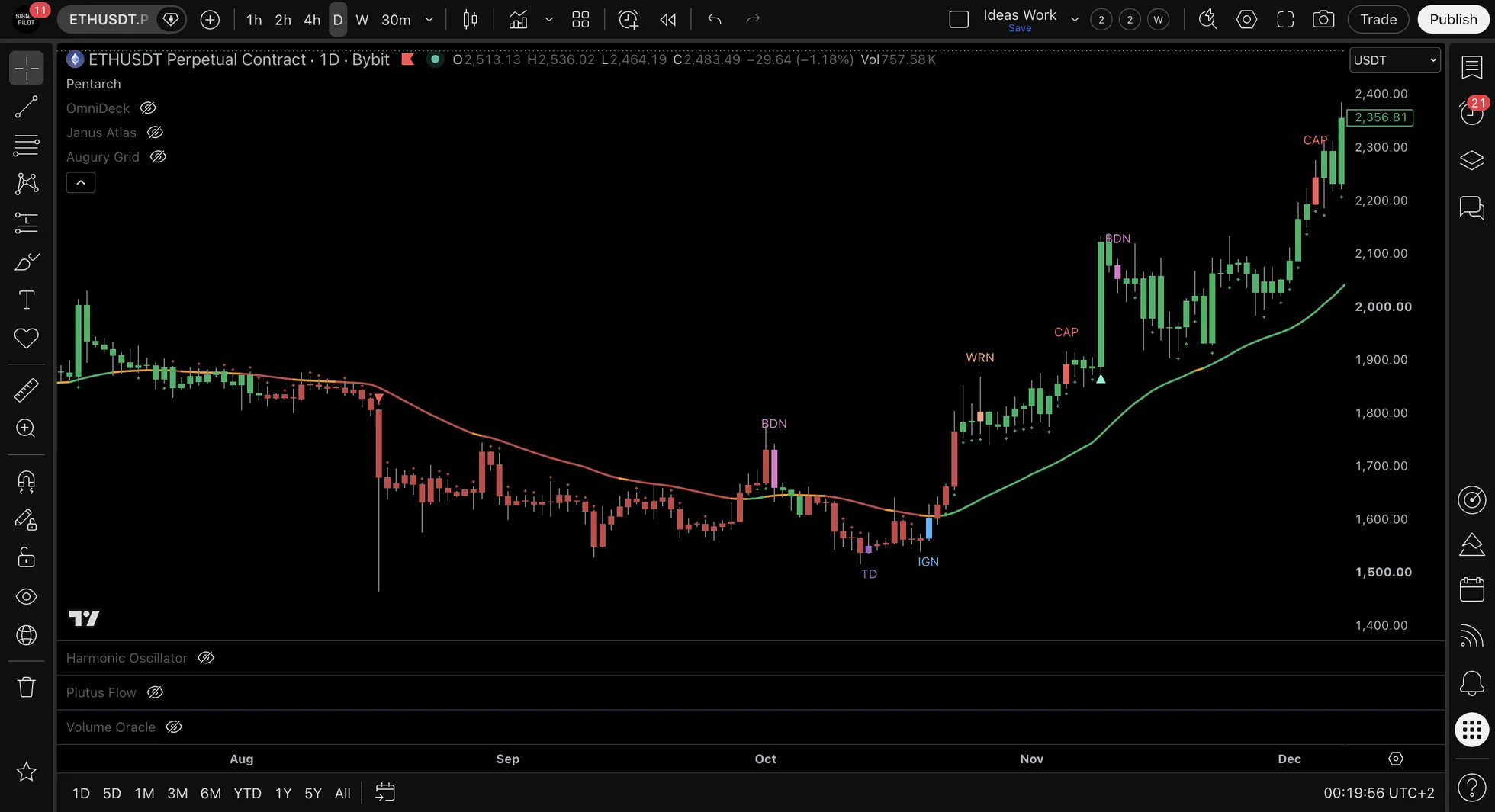

A cycle read left to right. TD and IGN mark the base, WRN and CAP arrive near the high, BDN follows. The order is unusually clean here, which is what makes it useful to learn from rather than typical of what most charts print.

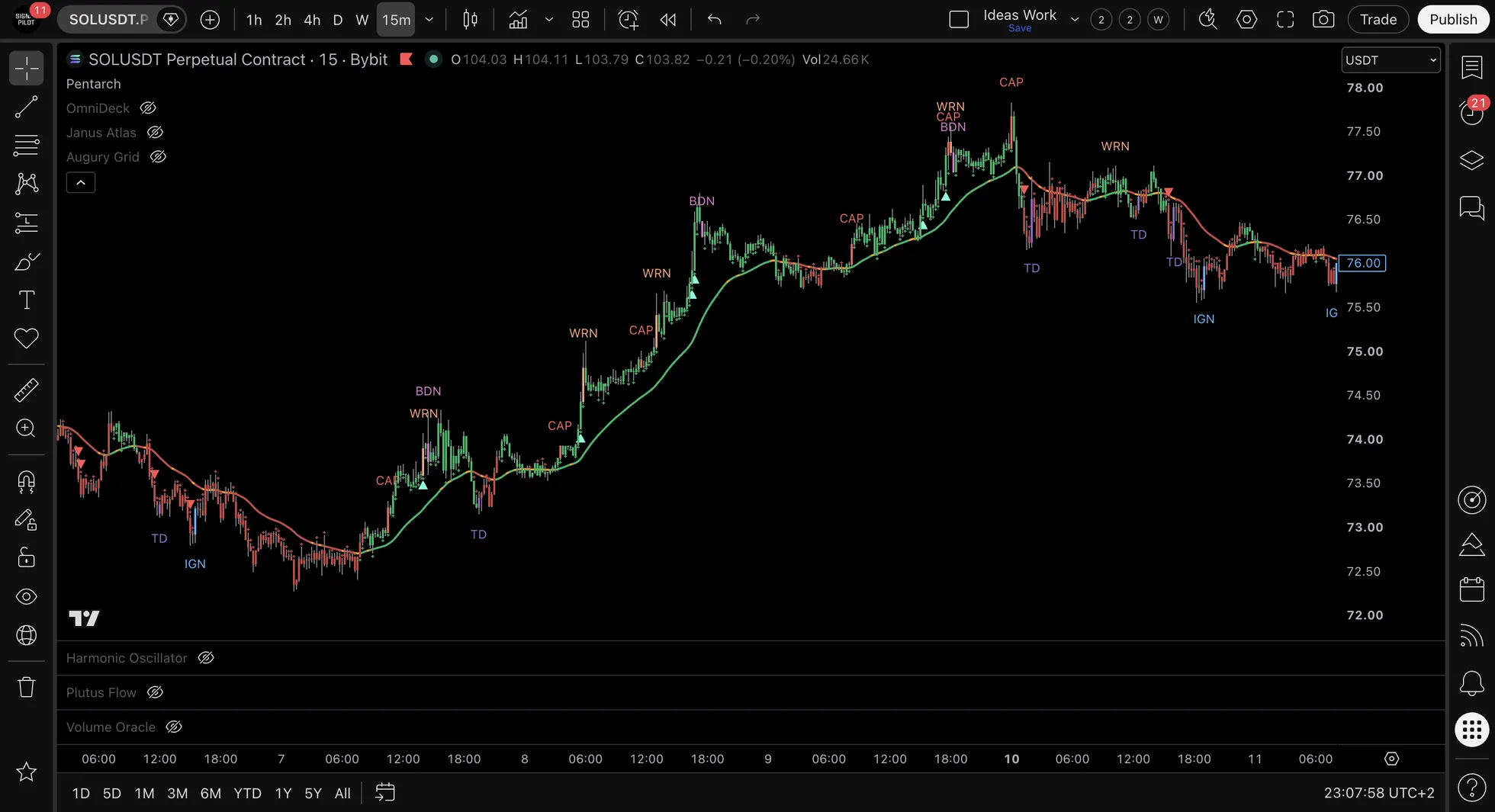

The same five events on a fifteen-minute chart. WRN and CAP alternate here rather than the run passing once through the five, which is the behaviour the measurement across 80 symbols found.

---

🟣 TD: Touchdown (Accumulation Phase)

Visual Display:	"TD" label appears below candle
Default Color:	Purple (customizable)

Detection Conditions:

• Price extended below Pilot Line threshold
• Oversold regime conditions present
• The NanoFlow micro-trend agrees
• All conditions confirm at bar close

Phase Indication: Accumulation phase conditions detected. Indicates potential transition from decline into accumulation.

Example: Stock declines from $100 to $85, TD event appears → Accumulation phase identified.

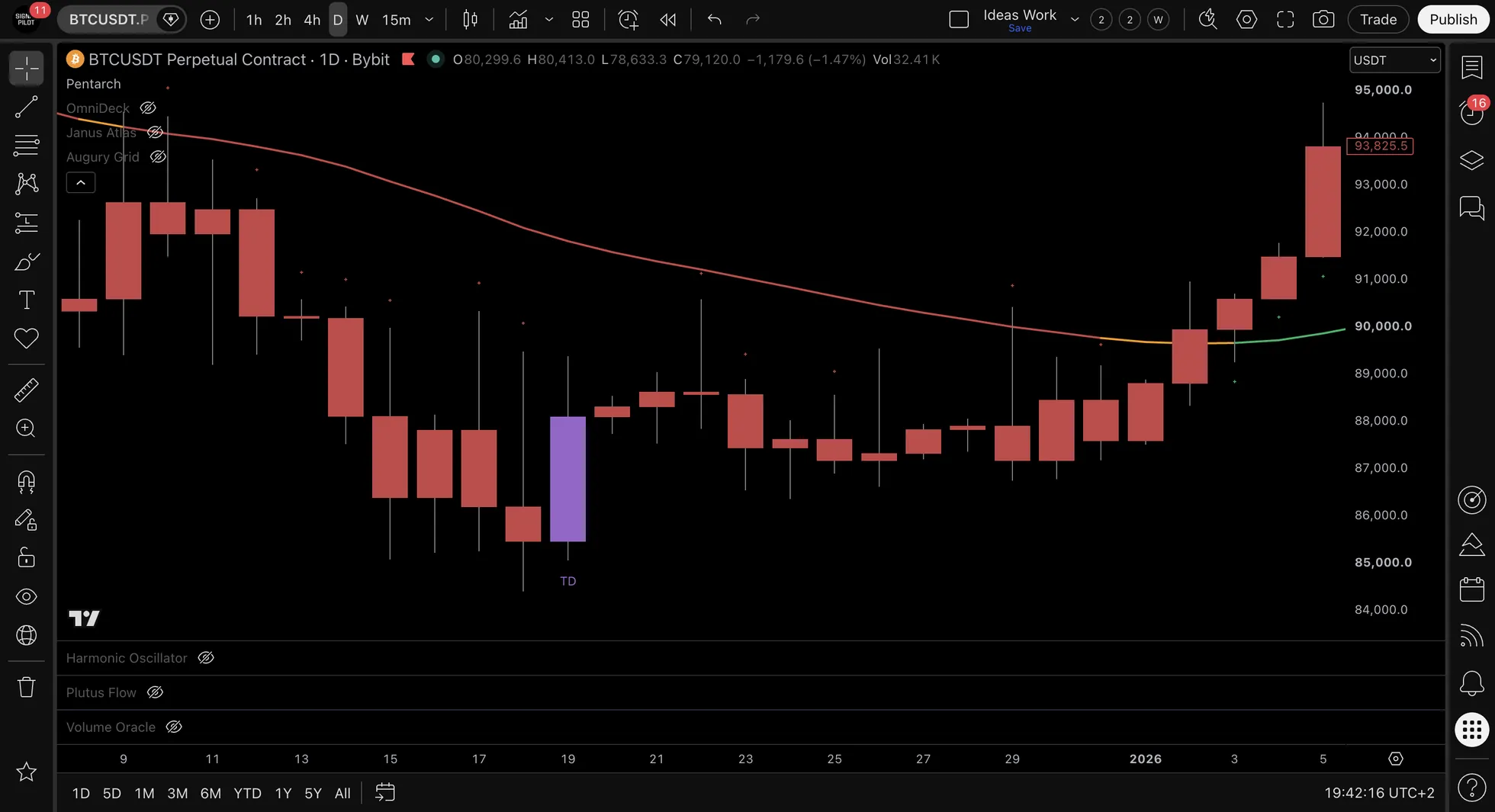

TD prints below the bar. The bar itself is recoloured, so the event stays readable when the label is scrolled out of view.

---

🩵 IGN: Ignition (Markup Phase)

Visual Display:	"IGN" label appears below candle
Default Color:	Blue (customizable)

Detection Conditions:

• Momentum breakout conditions met
• Bullish structure shift confirmed
• All four detection layers aligned
• Bar close confirmation

Phase Indication: Markup phase beginning detected. Indicates potential transition from accumulation into bullish momentum.

Example: After TD at $85, IGN appears at $87 → Markup phase identified.

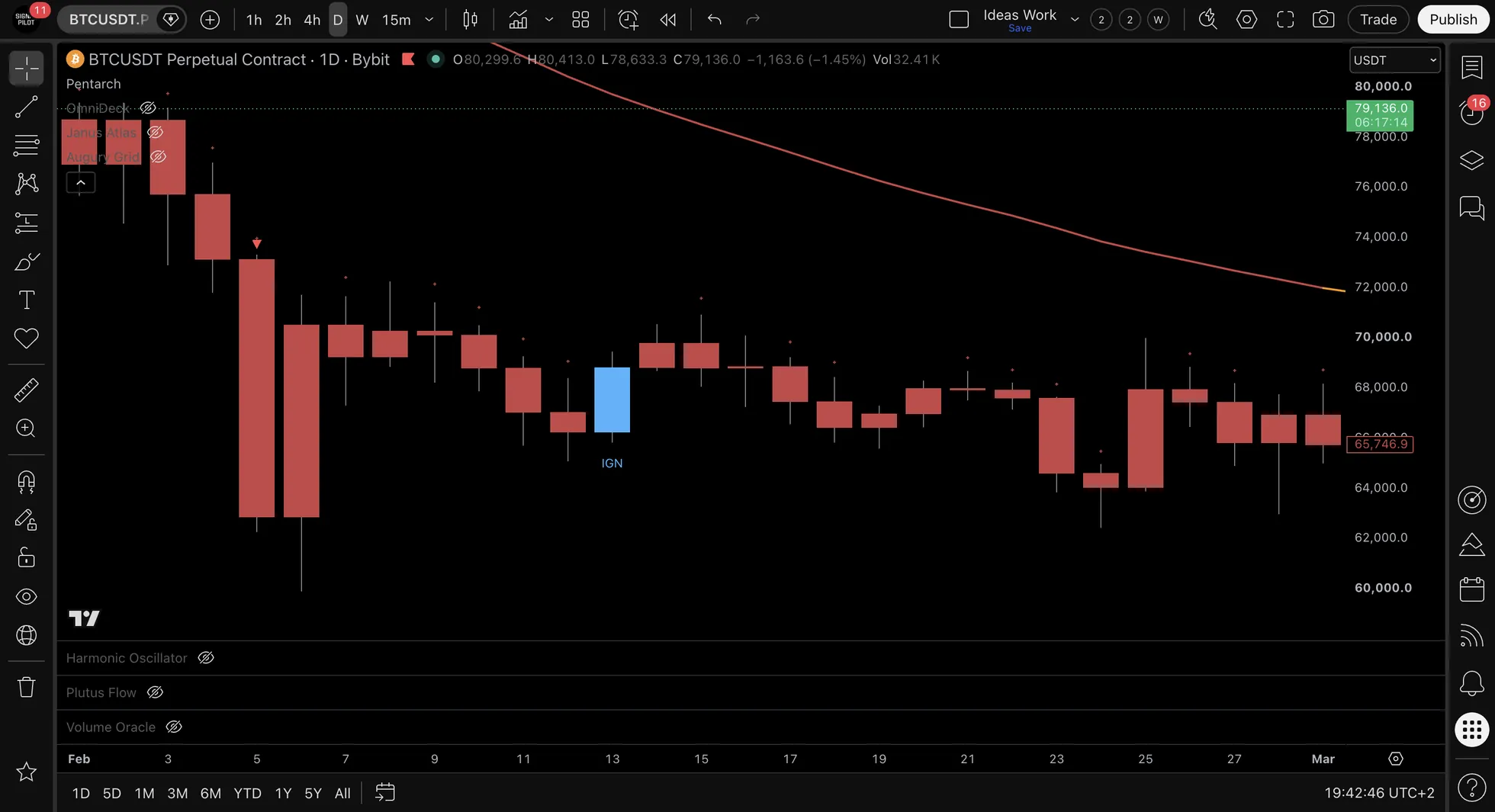

IGN sits below the bar, as TD does. It marks the move away from the base rather than the low itself.

---

🟡 WRN: Warning (Distribution Phase)

Visual Display:	"WRN" label appears above candle
Default Color:	Salmon (customizable)

Detection Conditions:

• Price extended above Pilot Line threshold
• Overbought regime conditions present
• Momentum weakening characteristics
• Distribution phase indicators present

Phase Indication: Distribution phase conditions detected. Indicates potential transition from markup into distribution.

Example: Stock rallies to $115, WRN appears → Distribution phase identified.

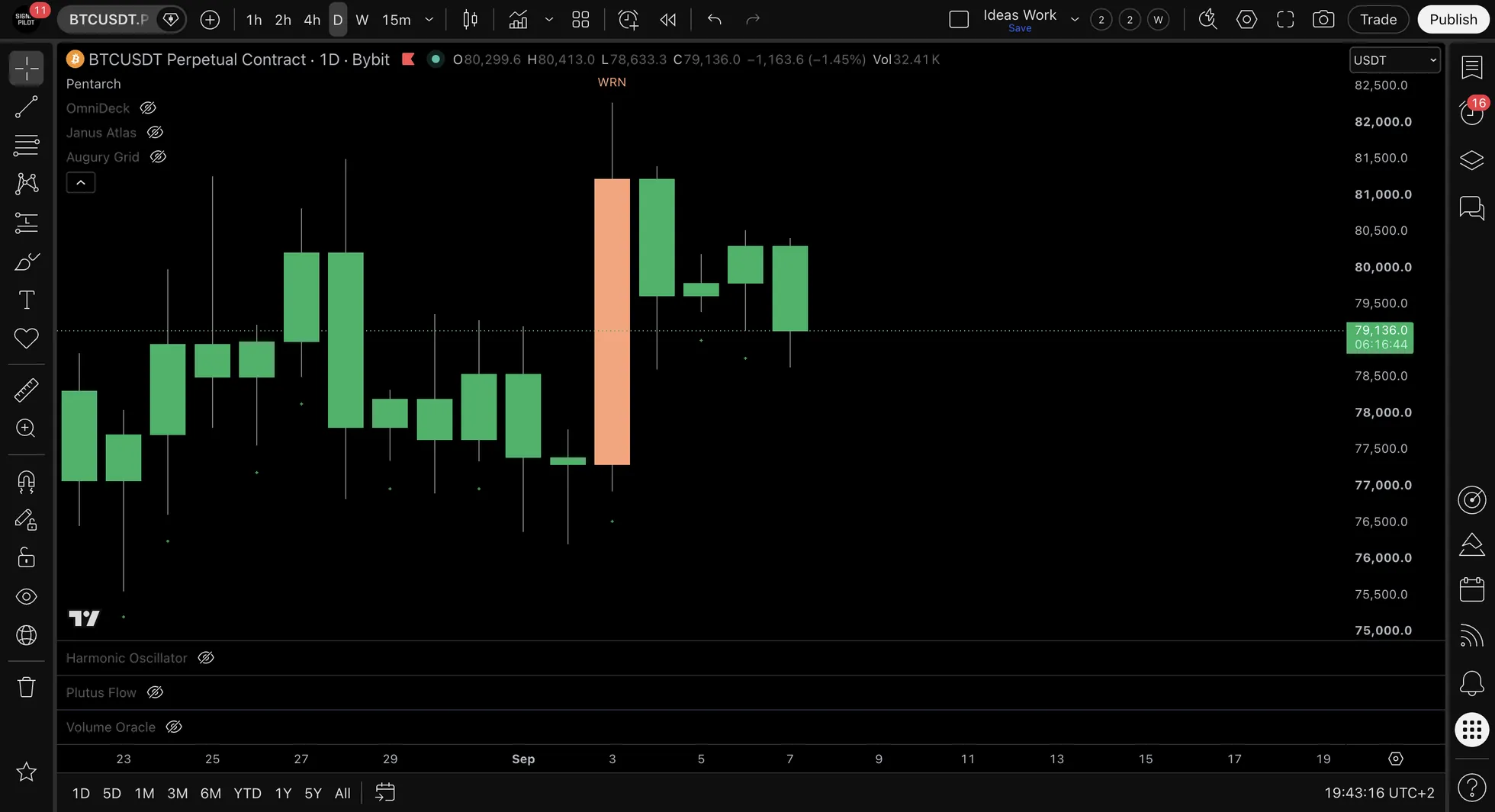

WRN prints above the bar. It arrived here while price was still making progress, which is what separates a warning from a reversal call.

---

🟠 CAP: Climax (Climax Phase)

Visual Display:	"CAP" label appears above candle
Default Color:	Red (customizable)

Detection Conditions:

• Extreme extension from Pilot Line threshold
• Climax exhaustion across all layers
• Peak momentum characteristics
• Bar close confirmation

Phase Indication: Climax phase conditions detected. Indicates late-cycle exhaustion characteristics.

Example: After WRN at $115, CAP appears at $120 → Climax phase identified.

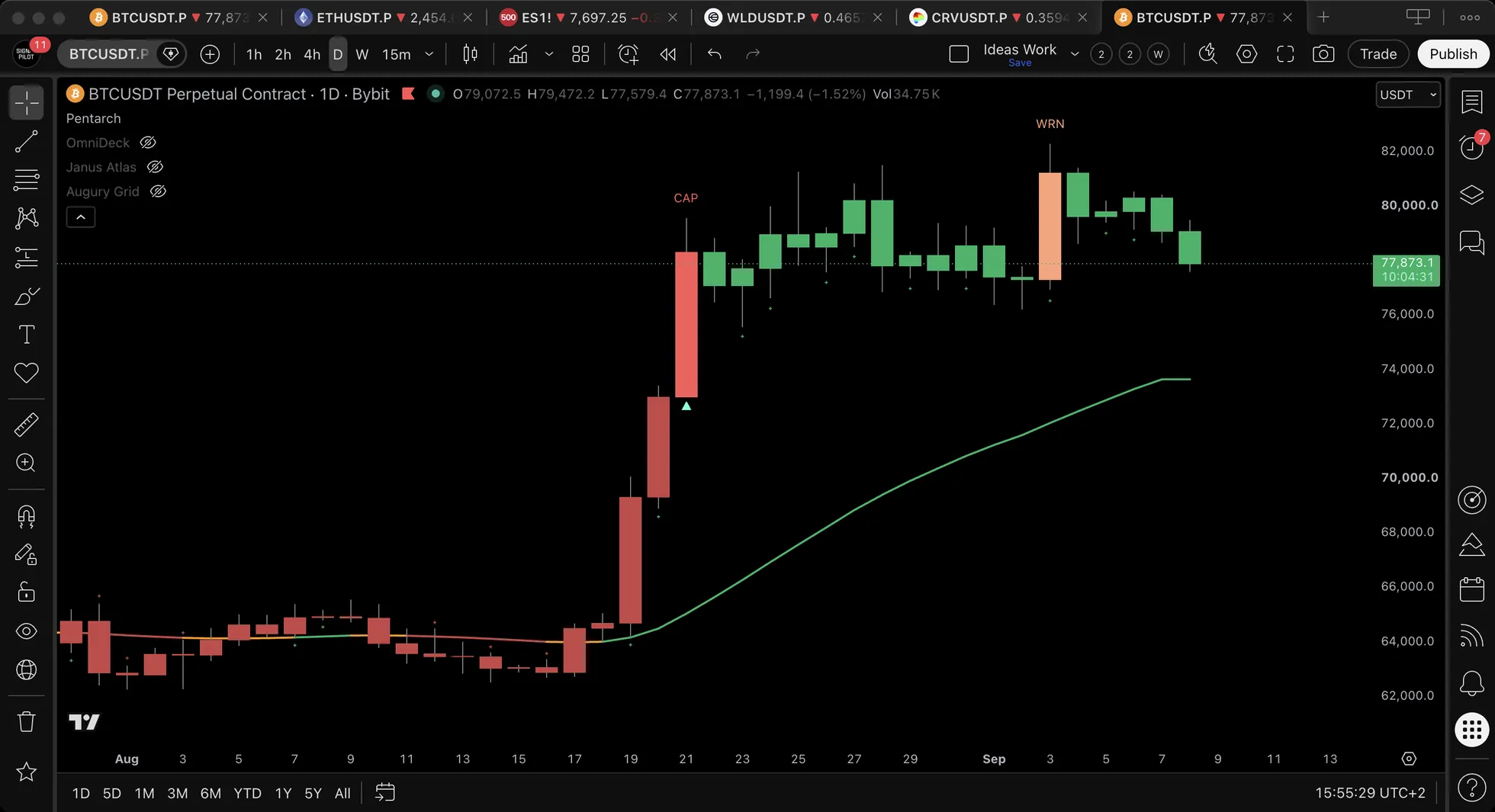

CAP above the bar that ended the run. Across the measured sample CAP was the most frequent of the five, and it followed IGN far more often than WRN did.

---

🔴 BDN: Breakdown (Decline Phase)

Visual Display:	"BDN" label appears above candle
Default Color:	Pink (customizable)

Detection Conditions:

• Bearish structure break confirmed
• Decline phase characteristics present
• Four-layer bearish alignment
• Bar close confirmation

Phase Indication: Decline phase initiation detected. Indicates transition from climax into decline cycle.

Example: After CAP at $120, BDN appears at $113 → Decline phase identified.

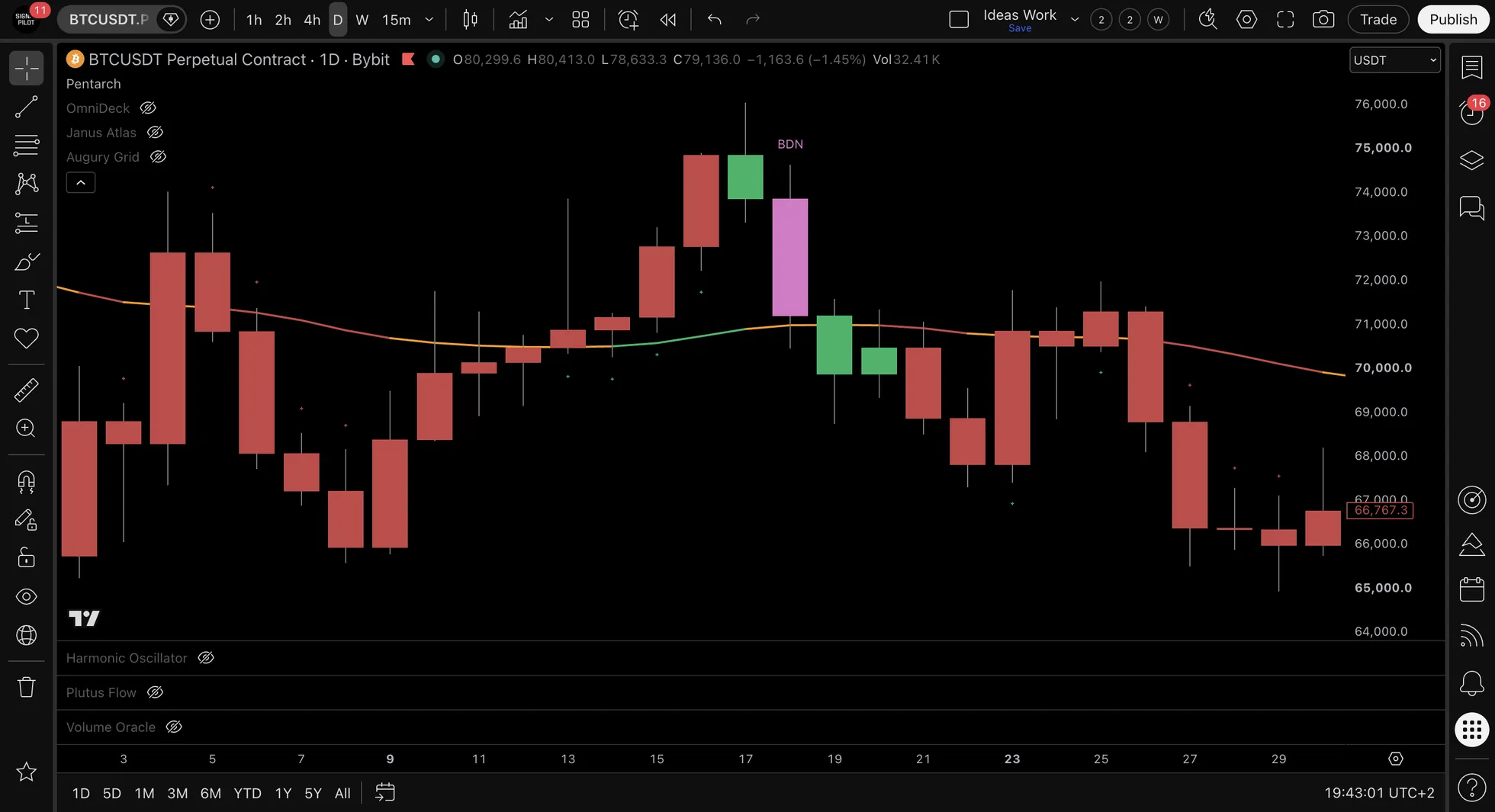

BDN prints above the bar. The bars either side carry nothing, which is normal: the five events are sparse by design.

---

✅ Knowledge Check

Question: Which Pentarch events are considered "Early-Cycle" events?

TD (Touchdown) and IGN (Ignition) WRN (Warning) and CAP (Climax) CAP (Climax) and BDN (Breakdown) All five signals are equally early-cycle

Check Answer

---

📚 Event Sequence Patterns Intermediate

Pentarch displays various event sequences. Some observed patterns include:

Full Cycle Pattern:

TD → IGN → WRN → CAP → BDN
(Complete cycle: Accumulation through Decline)

Partial Cycle Patterns:

TD → IGN (Early cycle only)
WRN → CAP (Late cycle only)
IGN → WRN (Markup to distribution)

Reversal Patterns:

BDN → TD → IGN (Decline to markup reversal)
CAP → BDN → TD (Climax to accumulation)

Interpretation of these patterns varies based on individual methodology. No pattern guarantees any specific outcome.

---

📖 A Worked Example: A Full Cycle on a 4-Hour Chart

(An illustration with round numbers, not a record of any real period. Educational only. Not financial advice.)

4-Hour Chart: Full Cycle Observation:

Bar	Signal	Price	Phase	Notes
Bar 1	TD	4,650	Accumulation	Oversold conditions
Bar 8	IGN	4,685	Markup	Momentum breakout
Bar 24	WRN	4,755	Distribution	Extended conditions
Bar 29	CAP	4,780	Climax	Exhaustion detected
Bar 37	BDN	4,720	Decline	Structure break

Observed Move: TD to CAP = +130 points, CAP to BDN = -60 points

Pattern Type: A complete five-event cycle across thirty-seven 4-hour bars.

This example demonstrates event appearance sequence. Individual interpretation and subsequent actions vary.

---

🎯 The Pilot Line: Trend Reference Intermediate

Visual Display: Line on chart tracking dynamic trend position

Functionality:

• Adaptive trend line adjusts to price movement
• Serves as reference for event distance calculations
• Changes color based on regime classification
• Updates continuously with each bar

Distance Measurement:

• TD events: Price extended below line
• IGN events: Price structure shifts bullish relative to line
• WRN events: Price extended above line
• CAP events: Extreme extension above line
• BDN events: Price breaks below line bearishly

The pilot line carries the regime colour, so the trend reading sits in the line itself rather than in a separate panel. It turned green here in late August.

Color States:

• Blue = Bearish regime identified
• Green = Bullish regime identified
• Gray = Neutral/transitional conditions

Pilot Line provides visual reference for cycle position. Interpretation varies by individual approach.

---

🎨 Regime Bar Colors: Market Structure Visualization Intermediate

Visual Display: Candle body colors change based on regime classification

Color Meanings:

Color	Regime	Conditions
Green	Bullish	Price structure shows bullish characteristics
Red	Bearish	Price structure shows bearish characteristics
Gray	Neutral	Transitional or unclear structure

Functionality:

• Updates every bar based on regime analysis
• Provides visual context for event appearance
• Independent of event generation

Relationship to Events:

• IGN events appear during bullish regime transitions
• BDN events appear during bearish regime transitions
• TD/WRN/CAP can appear in various regimes

Regime colors provide structure context. Individual interpretation varies.

Remember: Gray (neutral) regime bars indicate transitional periods where event reliability decreases. TD and IGN events during clear green/red regime bars have more context than events during gray choppy periods. Regime clarity provides better context for analysis.

---

⚡ NanoFlow: The Micro-Trend Crosses Intermediate

Visual Display: Cross marks drawn on the candles themselves

Functionality:

• Reads the micro-trend, the direction of the move bar by bar
• Marks each bar as leaning up or leaning down
• Green for a bullish micro-trend, red for a bearish one
• Updates each bar

Event Relationship:

• IGN needs the micro-trend to be bullish
• BDN needs the micro-trend to be bearish
• TD, WRN and CAP each need the micro-trend in a particular state

Reading the crosses:

• A green cross marks a bar leaning with the buyers
• A red cross marks a bar leaning with the sellers
• Where the colour changes, the micro-trend has turned

NanoFlow is a reading in its own right, not a gate. No event is accepted or rejected on it, and it carries its own two alerts.

---

🔄 Four-Layer Detection System Advanced

📊 Event Detection Process

Price → L1: Regime → L2: Pilot → L3: Extension → L4: Confirm → Event or Wait

⚡ Layer Priority: Layer 1 (Regime Classification) is the most critical filter. If Layer 1 fails, the event is rejected regardless of other layers. All 4 layers must confirm for event to fire.

Technical Methodology:

Layer 1: Regime Classification

• Analyzes price structure patterns
• Identifies bullish, bearish, or neutral conditions
• Provides foundational context for events

Layer 2: The Credential Gate

• Looks back over a window that widens with the timeframe
• Requires the stochastic to have reached the opposite extreme inside it
• Stops a top event firing where no top was built, and a bottom event where no bottom was

Layer 3: Extension and Participation

• Measures how far price sits from the Pilot Line, in ATR
• Checks volume against its own average
• Both thresholds are set per timeframe and adjusted for the asset class

Layer 4: Bar Close Confirmation

• All conditions must hold at bar close
• Prevents mid-bar false events
• Ensures stability before event display

Event Generation: All four have to hold at the same bar close. No mid-bar events occur.

Two more filters stand between a qualified event and one you see. A cooldown, plus a reset rule that keeps the same event from firing again until the stochastic has returned to neutral. And an exclusivity ladder: at most one event is drawn per bar, ranked CAP, then WRN, then BDN, then IGN, then TD. Because TD sits last, a touchdown that qualifies on the same bar as a climax or a warning is never drawn. Two hollow markers below the bar now say when a TD or an IGN was outranked, and three alert conditions report it, so the suppression is visible rather than silent.

NanoFlow is not one of the layers. It is drawn from the same fast moving averages the layers use, and it has its own two alerts, but no event is accepted or rejected on it.

---

✅ Knowledge Check

Question: How many detection layers must confirm simultaneously for a Pentarch event to appear?

Two layers (the regime and the close) Three layers (regime, credential gate, close) Four layers (regime, credential gate, extension and participation, close) Five layers (one for each cycle event)

Check Answer

---

🧭 How Pentarch Calibrates Itself Advanced

Three mechanisms sit underneath the four layers and move the thresholds those layers test against. None of them is a setting you switch on. All three run from the first bar, and together they are why the same Min Quality Score behaves differently on EURUSD than on BTCUSDT.

Asset class scaling

Pentarch reads the instrument's class from TradingView and scales seven dimensions by it. Crypto is the baseline at 1.00, because the per-timeframe arrays were tuned on crypto. Every other class is expressed relative to that.

Dimension	Crypto	Stock	Forex	Futures	Index, fund
Overbought level	1.00	0.96	0.88	0.96	0.92
Oversold level	1.00	1.05	1.15	1.05	1.10
Volume threshold	1.00	0.85	0.45	0.90	0.55
Distance from the Pilot Line	1.00	0.75	0.55	0.80	0.70
Body ratio	1.00	0.88	0.60	0.85	0.82
Cooldown length	1.00	1.15	0.90	1.10	1.15
Cycle tempo baseline	1.00	1.20	1.40	1.15	1.20

Forex moves furthest from the baseline, and for reasons you can read off the row. Its volume figure is a tick count rather than traded size, so the volume threshold falls to 0.45. Its ranges compress, so the overbought level comes down and the oversold level goes up. Its bars carry proportionally more wick, so the body requirement drops to 0.60. Stocks and futures gap between sessions, so their cooldowns lengthen. An instrument whose class TradingView does not report falls back to the crypto column.

Strict Mode multiplies on top of this, a flat 1.5 applied to the already scaled values.

Adaptive calibration

Asset class scaling knows what kind of instrument this is. Adaptive calibration measures what this particular instrument has been doing on this particular timeframe.

The measuring window is anchored to two hundred daily bars and rescaled for the chart's timeframe, with a floor of 50 bars and a ceiling of 200. From one minute to four hours it sits at the ceiling. On weekly and monthly charts it sits at the floor, which is roughly a year of weekly bars and four years of monthly ones.

Measured	Statistic	Feeds
Stochastic	90th and 10th percentile	the overbought and oversold levels
Distance from the Pilot Line	90th and 10th percentile	the extension thresholds
Volume against average	95th percentile	the volume spike threshold, clamped to 1.3 and 2.5
Candle body ratio	median	the minimum body a bar has to show
Bar range against ATR	95th percentile	the big bar threshold
Cycle tempo	mean bars between stochastic crossings of 50	the cooldowns and several timing windows

A measured value never replaces the static one. It is blended in at 40 percent once the window is full, against a 60 percent floor of the hand-tuned setting, and the blend ramps up from zero across the first window so an instrument with little history is not calibrated off noise.

The blend only ever loosens. Every dimension is wrapped in a guard that permits a threshold to relax and refuses to let it tighten. The overbought level can only come down, the oversold level can only go up, the body minimum can only fall, the big bar threshold can only fall, and the reset rule can only get easier to satisfy. An instrument the static arrays already fit is left alone. One whose stochastic compresses beyond what the arrays expect gets levels it can actually reach.

Cycle tempo is the exception in kind rather than in direction. It is a ratio clamped between 0.7 and 1.3 that multiplies the five cooldowns and several timing windows, so a market cycling faster than its timeframe baseline gets shorter cooldowns and one cycling slower gets longer ones.

Accuracy feedback

The third mechanism watches what happened after each event and feeds it back into the next one.

When an event prints, Pentarch records the price and the ATR at that bar, then follows the running extreme for a fixed number of bars. The window is 20 bars on low timeframes, 15 on mid, 10 on high, 8 on position and 6 above that, scaled by the same cycle tempo ratio, with a floor of 4.

Event	Counted as a hit when
TD	price reached one ATR above the event bar
IGN	price reached one and a half ATR above the event bar
WRN	price fell half an ATR, or sat below the event bar when the window closed
CAP	price fell one ATR below the event bar
BDN	price fell one ATR below the event bar

WRN is the only one with partial credit. A drop of half an ATR scores full marks, and merely stalling below the event bar when the window closes scores three quarters. Every other event is a plain hit or miss.

Each result folds into a running figure for that event type, weighted three quarters old and one quarter new, so the last four or so events dominate. Every type starts at 0.5, the neutral value, and nothing changes until three events of that type have been evaluated. After that, two things do.

• The quality score of that event type moves by up to fifteen points in either direction.
• The effective Min Quality Score for that type shifts by up to about ten points, downward when the type has been running accurate and upward when it has not.

The Confidence row in the info panel shows the two combined, sixty percent quality against forty percent tracked accuracy. Until three evaluations exist the confidence figure is the quality score on its own and the row reads "learning".

All three mechanisms run left to right across the chart on confirmed bars only. Change the timeframe or the symbol and every measurement restarts from that chart's own history.

---

🔔 Alert Configuration Beginner Friendly

Pentarch declares 16 alerts. The five cycle events are sent through Pine's dynamic alert, so each one carries a full readout rather than a fixed string. The other eleven are ordinary alert conditions you pick from TradingView's list, and three of those eleven report a suppressed event rather than a fired one.

The five cycle events

Alert	Fires when
Alert: Touchdown (TD)	A TD survives the ladder and the quality gate, at bar close
Alert: Ignition (IGN)	An IGN survives the ladder and the quality gate, at bar close
Alert: Warning (WRN)	A WRN survives the ladder and the quality gate, at bar close
Alert: Climax (CAP)	A CAP survives the ladder and the quality gate, at bar close
Alert: Breakdown (BDN)	A BDN survives the ladder and the quality gate, at bar close

Each has its own checkbox in the Alerts settings group, all five on by default. The message is not a one-liner. It opens with the event name, the symbol and the price, then gives the quality label with its stars, a short list of what did and did not support the reading, and a details block with the stochastic, the distance from the Pilot Line in ATR, the volume ratio and the body size. The label reads STRONG from 70, GOOD from 55, MODERATE from 40 and WEAK below that, on a score out of 100. The stars run one to five off the same score: five from 85, four from 70, three from 55, two from 40 and one below that. Label and stars part company in one place only, at the top, where STRONG covers both four stars and five.

The eleven condition alerts

Alert	Fires when
NanoFlow Bullish	A bullish NanoFlow cross prints under the bar
NanoFlow Bearish	A bearish NanoFlow cross prints above the bar
Momentum Thrust Bullish	Price clears the recent range upward with widening ATR
Momentum Thrust Bearish	Price breaks the recent range downward with widening ATR
Pilot Line Cross Bullish	Close crosses above the Pilot Line
Pilot Line Cross Bearish	Close crosses below the Pilot Line
Regime Flip to Bull	The regime turns bullish
Regime Flip to Bear	The regime turns bearish
TD SUPPRESSED	A TD qualified on this bar and the ladder drew something else
IGN SUPPRESSED	An IGN qualified on this bar and the ladder drew something else
BOTTOM PHASE SUPPRESSED	Either of the two above, on one condition

What the ladder hides. At most one of the five events is drawn per bar, ranked CAP, then WRN, then BDN, then IGN, then TD. TD is last, so a touchdown that qualifies on the same bar as a climax or a warning is never drawn. Two hollow circles below the bar mark a suppressed TD and a suppressed IGN, and three alert conditions report them: one for each, plus a third that fires on either. So the absence of a TD label is reported rather than merely inferred.

---

🔗 Integration with Other Indicators

💡 Pentarch Works Best in Combination

While Pentarch provides powerful cycle phase detection on its own, combining it with other Signal Pilot indicators creates confluence analysis. Here are common integration workflows:

Pentarch + Janus Atlas (Levels Confluence)

Workflow:

1. TD or IGN event appears → Check if price is near a key Janus Atlas level (Daily Low, Weekly High, POC, VWAP, etc.)
2. Level confluence = stronger context → Event at key support/resistance level provides additional confluence
3. Expected outcome: Reversal events that align with structural levels have more confluence

Example: TD event fires while price touches Janus Atlas Daily Low = support confluence detected

Pentarch + Volume Oracle (Regime Confirmation)

Workflow:

1. TD or IGN event appears → Check Volume Oracle regime for volume confirmation
2. Regime alignment → Bullish Pentarch event + Accumulation regime (green) = volume flow confirms cycle phase
3. Expected outcome: Pentarch events aligned with Volume Oracle regime have confluence

Example: IGN event fires while Volume Oracle shows Accumulation regime (green, 75%) = markup phase confluence detected

Pentarch + OmniDeck (Multi-System Validation)

Workflow:

1. IGN event appears → Check OmniDeck Regime Box for trend context
2. OmniDeck shows bullish regime → IGN event aligned with broader trend = confluence detected
3. OmniDeck shows conflicting regime → Trend context conflict noted

Example: IGN reversal event with OmniDeck showing bullish regime box = trend-aligned confluence

Pentarch + Harmonic Oscillator (Momentum Confirmation)

Workflow:

1. TD or IGN event appears → Check if Harmonic Oscillator prints TRENDING▲ or BIAS▲
2. Momentum alignment → Pentarch reversal event + momentum shift = confluence detected
3. Expected outcome: Event + momentum agreement provides additional context

Example: IGN event fires while Harmonic Oscillator transitions from Bear to Bull = momentum confluence detected

Pro Tip: The Trinity Workflow

For maximum confluence, combine Pentarch (timing) + Janus Atlas (levels) + Volume Oracle (regime confirmation). Look for IGN/CAP events that occur at key levels with aligned regime (Accumulation for bullish events, Distribution for bearish events). This triple-confluence approach identifies the strongest confluence zones.

See also: Complete Analysis Workflow Guide for detailed multi-indicator strategies.

---

⚠️ Common Mistakes to Avoid

Learn from Common Pitfalls

These mistakes are frequently made by new Pentarch users. Avoid them to improve your results:

Mistake #1: Ignoring Market Context

The Problem: Not all events have equal context. TD/IGN events in choppy, ranging markets have less confluence. Analyzing events without considering market context reduces analysis quality.

The Fix:

• Confirm trend context first (use OmniDeck Regime Box or Pilot Line direction)
• Higher timeframe events (4H, Daily) generally have cleaner context than 5-minute events
• Look for confluence with other indicators (Janus Atlas levels, Volume Oracle regime)
• Events during low-volume, narrow-range conditions have less context

Remember: An event with a level and a volume reading behind it is a different reading from the same event alone. The difference is on screen.

Mistake #2: Ignoring Event Sequence Position

The Problem: BDN event without prior CAP/WRN events = late-cycle event. Early-cycle events (TD → IGN) have different context than late-cycle events (BDN after extended move).

The Fix:

• Note TD and IGN events (early-cycle indicators)
• Standalone BDN events indicate late-cycle conditions
• Complete sequences (TD → IGN → WRN → CAP → BDN) are rare but significant
• Partial sequences (TD → IGN) are more common

Remember: Early events (TD/IGN) indicate different cycle phase than late events (BDN).

Mistake #3: Using Excessively Low Timeframes

The Problem: 1-minute and 5-minute charts produce many events, but noise increases and context clarity decreases.

The Fix:

• Start with 15-minute or 1-hour timeframes to learn event behavior
• 4-hour and Daily timeframes provide clearest event context
• Lower timeframes have more noise and less clarity
• Higher timeframe context helps filter lower timeframe events

Remember: Higher timeframes = cleaner events, lower noise, clearer context.

Mistake #4: Ignoring Risk Context

The Problem: Not all Pentarch events result in immediate reversals. Events indicate phase conditions, not guaranteed outcomes.

The Fix:

• Janus Atlas levels provide structural reference points
• IGN events: Note nearby support levels for context
• CAP events: Note nearby resistance levels for context
• Risk management is essential for any analysis methodology

Remember: Events provide phase identification. Risk management is separate from event detection.

Mistake #5: Treating All Five Events as Identical

The Problem: TD and WRN are "warning" events (early/late cycle warnings), while IGN and CAP are "confirmation" events (phase transitions). Each event serves a different purpose.

Understanding each event:

• TD (Touchdown): Early cycle warning - accumulation phase detected
• IGN (Ignition): Momentum confirmation - markup phase detected
• WRN (Warning): Late cycle warning - distribution warning detected
• CAP (Climax): Exhaustion event: climax phase detected
• BDN (Breakdown): Breakdown event: decline phase detected

Note: TD and WRN are early/late cycle warnings. IGN, CAP, and BDN indicate phase transitions.

Mistake #6: No Level Context

The Problem: Analyzing events without knowing nearby structural levels provides incomplete context.

The Fix:

• Identify nearby support and resistance from the levels in Janus Atlas
• Watch for opposite-direction events (IGN → then watch for WRN or CAP)
• Note cycle progression through event sequence
• Use Pilot Line and swing levels as structural references

Remember: Pentarch identifies cycle phases. Level context provides structural framework.

Additional Resources

For more best practices, see Best Practices & Pro Tips. For risk management guidance, see Analysis Workflow Guide.

🎯

Master Pentarch Cycle Analysis the Right Way

Advanced Learning Guide reveals: Why 3 consecutive failed setups is statistically normal (not system failure), the 4-step emotional recovery protocol, complete decision tree to avoid analysis paralysis, and the 5 beginner mistakes that undermine 80% of cycle-based approaches

📖 Open Learning Guide →

⏱️ 15-18 minute read

---

🌫️ When This Doesn't Work Well

Understanding Reduced Reliability Conditions

Pentarch events show reduced context clarity in certain market conditions. Recognizing these environments helps set appropriate expectations:

Choppy, Sideways Markets

The Condition: When price moves sideways in a tight range with no clear directional bias, events fire more frequently but context clarity diminishes. Gray (neutral) regime bars often cluster during these periods.

What Happens: TD/IGN events may fire multiple times in alternating directions without sustained moves. Event-to-noise ratio decreases.

Context: This isn't a flaw: it reflects actual market behavior. Sideways consolidation produces ambiguous momentum patterns that generate valid but lower-context events.

Extremely Low Volume Periods

The Condition: During holidays, overnight sessions, or illiquid trading hours, volume drops significantly below average levels.

What Happens: Price moves lack significant volume participation. Events may fire on small moves that quickly reverse. Context becomes less clear.

Context: Pentarch detects momentum shifts, but low volume means those shifts lack the "fuel" (buying/selling pressure) to sustain moves. Combine with Volume Oracle to identify these conditions.

Major News Events & Earnings Releases

The Condition: During Federal Reserve announcements, earnings reports, or major geopolitical events, price action becomes driven by news rather than technical patterns.

What Happens: Events may fire immediately before/after news, but price can gap or reverse violently regardless of event. Technical patterns temporarily lose relevance as fundamental news dominates.

Context: Pentarch analyzes price and momentum: it doesn't "know" about external catalysts. Events remain technically valid but compete with stronger fundamental forces during these windows.

Very Low Timeframes (1-Minute, 5-Minute)

The Condition: On 1m and 5m charts, market microstructure noise (bid-ask spreads, algos, spoofing) becomes significant relative to price moves.

What Happens: Event frequency increases dramatically, but many events represent noise rather than meaningful momentum shifts.

Context: Pentarch works on all timeframes, but very low timeframes amplify noise faster than they amplify event quality. Higher timeframes (15m+, 1H, 4H, Daily) filter out microstructure noise and improve event-to-noise ratio.

Extended Trends Without Clear Exhaustion Signals

The Condition: During strong trending markets (especially parabolic moves), counter-trend signals may fire but price continues trending without reversal.

What Happens: CAP or TD events appear indicating reversal conditions, but momentum remains so strong that price only pauses briefly before continuing the original trend. Counter-trend events may occur during persistent momentum.

Context: Markets can remain overbought or oversold longer than technical indicators suggest. Pentarch detects exhaustion patterns, but extraordinary trends (driven by strong narratives or momentum cascades) can persist beyond typical cycle lengths. Confirm with OmniDeck regime strength and Volume Oracle exhaustion patterns.

Recognizing Reduced Reliability Environments

Practical Identification:

• Gray regime bars clustering: Signal of choppy conditions: wait for regime clarity
• Volume bars consistently below average: confirm low participation with Volume Oracle
• Calendar awareness: Check economic calendars for major scheduled events
• Event frequency spiking: If you see 5+ events in rapid succession alternating directions, you're likely in chop
• Timeframe comparison: If 5m shows events but 1H doesn't, the lower timeframe is likely noise

Remember: Pentarch doesn't "fail" in these conditions: it accurately reflects that the market itself is ambiguous or driven by non-technical factors. Recognising the conditions the detection is not built for is part of reading it.

---

❓ Frequently Asked Questions

Q: When do events appear?

A: Events appear when all four detection layers confirm simultaneously at bar close. No mid-bar events occur.

Q: Can events repaint?

A: No. All events confirm at bar close and do not change retroactively.

Q: How many events appear on average?

A: Event frequency varies by asset, timeframe, and market conditions. Some periods show frequent events, others show sparse events.

Q: Do all five events always appear?

A: No. Partial cycles occur more often than complete cycles. Complete five-event cycles appear less often than partial sequences.

Q: What timeframes work?

A: All timeframes supported. Event characteristics may vary across different timeframe selections.

Q: Can multiple events appear on same bar?

A: No. Only one event type appears per bar close.

Q: What if I miss an event?

A: Events remain on chart after appearance. Historical events visible on past bars.

Q: How do I customize colors?

A: Open indicator settings and go to the colour section. There is one colour field per event, so each of the five can be set independently.

Q: Does Pentarch work on futures/forex/crypto?

A: Yes. Compatible with all asset types available on TradingView.

Q: Can I use Pentarch with other indicators?

A: Yes. Pentarch can be combined with other analysis tools. Compatibility with entire Signal Pilot suite available.

---

📋 Quick Reference Guide

Event Quick Reference

Event	Position	Default Color	Phase	Key Characteristics
TD	Below candle	Purple	Accumulation	Oversold, below Pilot Line
IGN	Below candle	Blue	Markup	Momentum breakout, structure shift
WRN	Above candle	Salmon	Distribution	Extended, momentum weakening
CAP	Above candle	Red	Climax	Extreme extension, exhaustion
BDN	Above candle	Pink	Decline	Structure break, bearish shift

Note: These are the default colours. Each one can be changed in indicator settings.

Component Quick Reference

Component	Location	Function
Event Labels	On chart	Show cycle phase detection
Pilot Line	On chart	Dynamic trend reference
Regime Colors	Candle bodies	Structure visualization
NanoFlow	On the candles	Micro-trend crosses

Common Signal Sequences

Early Cycle:  TD → IGN
Full Cycle:   TD → IGN → WRN → CAP → BDN
Late Cycle:   WRN → CAP → BDN
Reversal:     BDN → TD → IGN

---

📞 Support

Technical Questions: support@signalpilot.io

📚 Further Reading

Deepen your understanding with these articles from the Signal Pilot Blog:

How to Analyze Cycles with Pentarch

Master market timing using Pentarch's five-cycle detection system

Why Markets Move in Cycles

Understand the rhythmic patterns driving price action

Cycles Within Cycles

Discover how multiple timeframe cycles interact and confirm

---

💬 Need Help?

Have questions about Pentarch? Join our Discord community to get help from experienced users, share setups, and discuss approaches!

---

See Also

Related Pages:

• Janus Atlas v1.0 - Combine cycle timing with key structural levels
• OmniDeck v1.0 - Ten systems on one chart, read alongside Pentarch rather than in place of it
• Pentarch Quick Reference - One-page signal cheatsheet
• How to Set Up Alerts - Get the event when it becomes readable
• Analysis Workflow - How Pentarch fits into complete analysis system

---

Disclaimer: This indicator provides cycle phase detection based on technical analysis methodology. All signals represent historical condition detection. Individual interpretation, application, and outcomes vary. Past signal patterns do not guarantee future results. This is not financial advice.

---

Educator? Earn 15–30% recurring commissions. Learn more →

← Back to Product Get Access →
